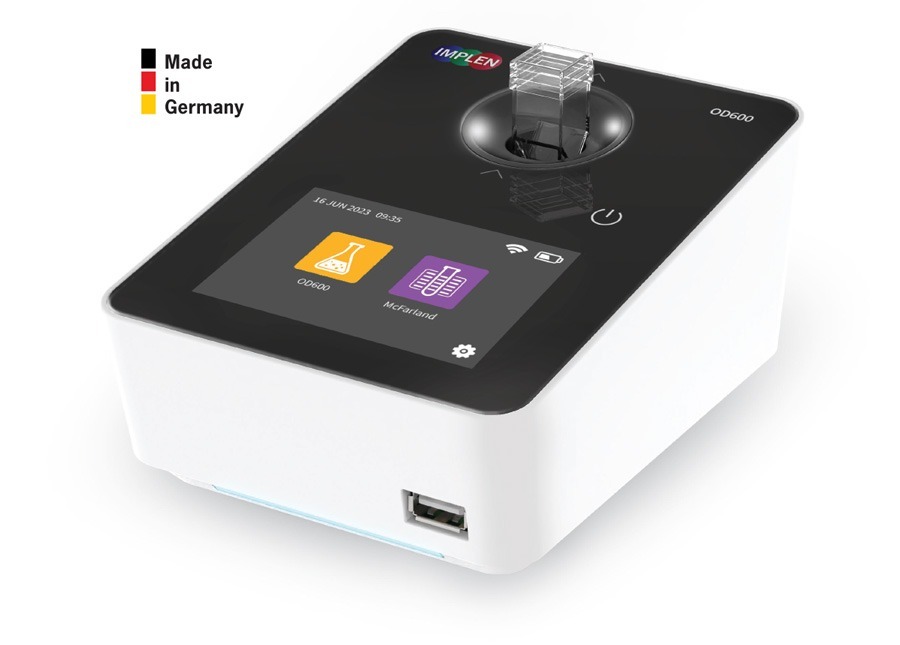

Implen OD600®
Fast, easy, and accurate determination of cell density at 600 nm
Introducing the Implen OD600®: Enhancing Microbial Growth Analysis
Discover the power of Optical Density (OD) measurements with the Implen OD600®, designed to streamline microbial and cell growth analysis in your lab.
The Implen OD600® is a user-friendly device for measuring sample optical density at ~600 nm, ideal for various applications including cell growth rates and McFarland turbidity measurements.
Key Features of the Implen OD600®
- Higher absorbance range, accuracy and reproducibility
- Pre-programmed with intuitive OD600 & McFarland applications
- Utmost compatibility (DiluCell, cuvette, tubes) without adapters
- Data export to USB – .xls and .csv formats
- Easy LIMS integration via WiFi, LAN/Ethernet (REST API PUSH)
- Unlimited mobility, suitable for use in field work,
safety cabinets, and incubation chambers,
even under anaerobic conditions*
*Limited use in conditions involving CO₂; please contact support.
- Glove-compatible 3.5″ touchscreen display
- Integrated battery with a runtime > 8 hours (continuous use)
- High-precision versatile measurements, up to 4 A
- User-friendly, multilingual interface
- Large data storage & universal capabilities
- Extremely lightweight, compact, and portable
- No maintenance or recalibration needed ever
User-Friendly, Robust, and Globally Adaptable for Any Lab
The Implen OD600® delivers an intuitive user experience, robust data management, and seamless LIMS integration, making it a trusted choice for laboratories worldwide. Its multilingual interface and flexible sample compatibility support a wide range of applications and laboratory environments.
Built-in OD600 & McFarland Applications for Bacterial Growth Measurement

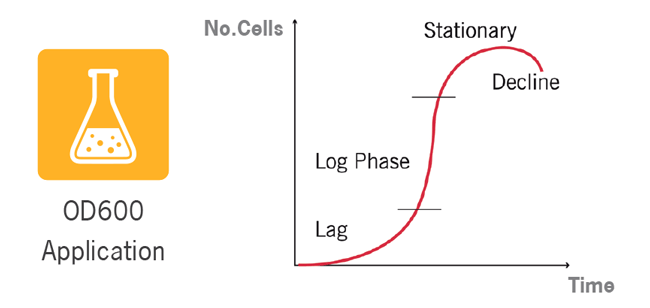

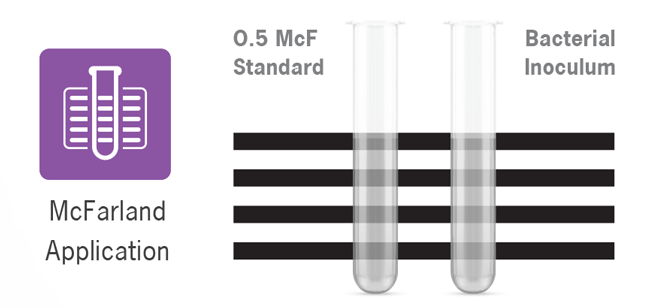

The Implen OD600® device comes equipped with two built-in programs: OD600 and McFarland, complemented by a built-in Sample list function for effortless data management and export. The OD600 program enables the monitoring of bacterial growth in liquid culture media by measuring the optical density at 600 nm (OD600), crucial for determining the stage of growth and ensuring optimal harvesting conditions. With the McFarland program, users can estimate cell suspension density by comparing it to a series of standard turbidity solutions, simplifying tasks such as antimicrobial susceptibility testing and bacterial inoculum preparation. These built-in functions streamline the measurement process, providing accurate and reliable results for a variety of laboratory applications.
An Indispensable Tool for Microbial Growth Analysis in Any Lab
User-Friendly Interface & Utmost Compatibility Without Adapters

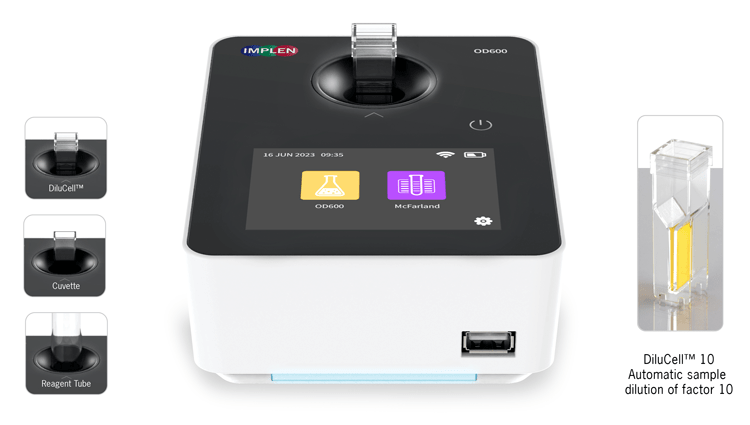

The Implen OD600® features an intuitive, user-friendly interface based on the app system used in the NanoPhotometer® line. The device supports various cuvettes and test tubes without the need for an adapter, including DiluCells, 10 mm macro and semi-micro cuvettes, and 10, 12, 16, and 18 mm glass/falcon tubes.
Stand-alone, Lightweight, & Portable
The Implen OD600® is a modern, stand-alone device with an integrated battery that offers over 8 hours of uninterrupted operation. It features both an external power adapter and an internal rechargeable battery.
Weighing only 0.6 kg and measuring 140 x 110 x 70 mm, this compact device is easily portable and fits any scientific setup. Its unlimited mobility makes it ideal for use in incubation cabinets and under anaerobic conditions.*
*Limited use in conditions involving CO₂; please contact support.

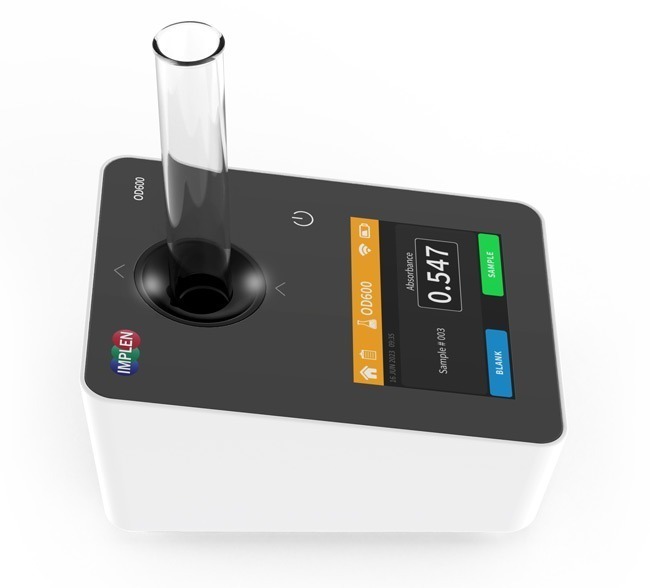

High-Precision & Versatile Measurement
Measures growth rates of diverse cell types using OD600 and McFarland methods. The photometric range covers
OD600: 0 – 4 A and McFarland: 0 – 16 MFU.
Reliable and accurate measurements for various cell types, including E. coli and yeast, with an accuracy of
OD600: @ 1A: < ±0.01 A and
McFarland: @ 0 – 8 MFU: ≤ ±0.1 MFU.
No Maintenance Needed – Ever
The Implen OD600® is designed for lifetime accuracy and precision without the need for maintenance or recalibration, ever.

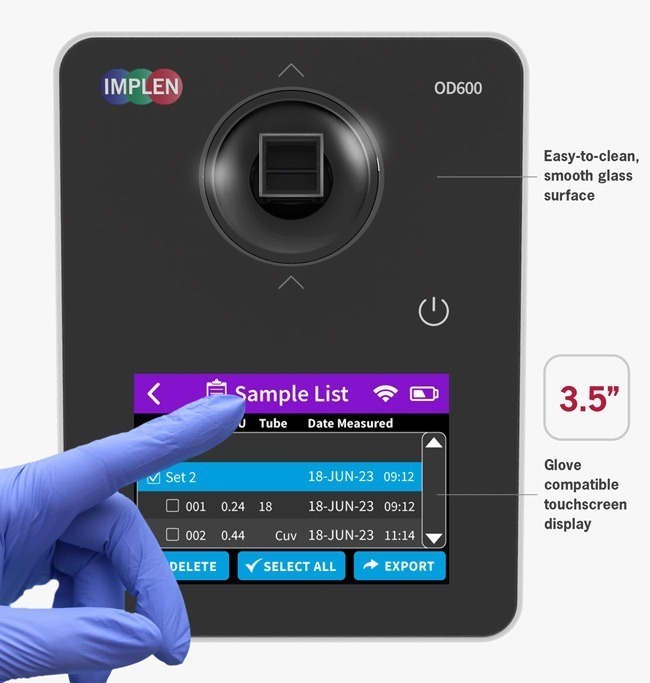

Glove-Compatible 3.5″ Touchscreen Display & Easy Maintenance
The Implen OD600® is designed for ease of use, featuring a 3.5-inch, glove-compatible touchscreen with a seamless, crevice-free glass surface and a resolution of 480 × 320 pixels. Its durable design supports operation in a variety of laboratory environments, including laminar flow and biosafety hoods. The instrument can also be used in incubation chambers and under anaerobic conditions.*
Maintenance is simple and efficient. The smooth glass display can be cleaned with water, ethanol, or other common laboratory cleaning agents, while both the glass plate and cuvette shaft are fully wipeable to support routine cleaning and hygiene requirements.
*Limited use in conditions involving CO₂; please contact support.

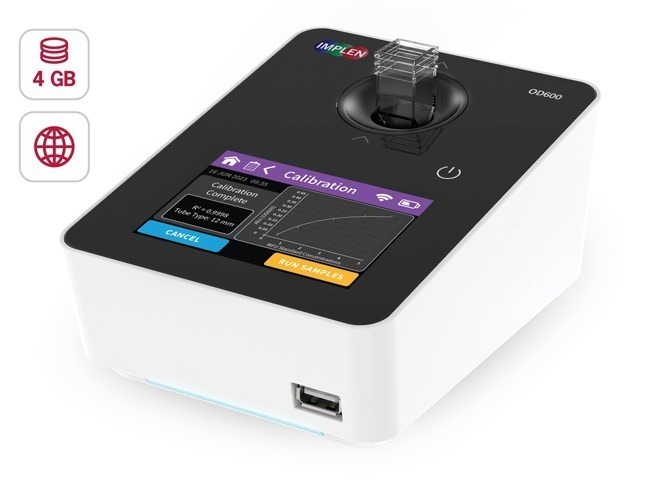

Large Data Storage & Universal Capabilities
The device includes 4GB of internal storage for efficient data management, enabling access to all previously measured sample data through the sample list feature.
The Implen OD600® also features a multilingual interface accessible in English, Chinese, Japanese, German,
Spanish, and French, catering to a global user base.

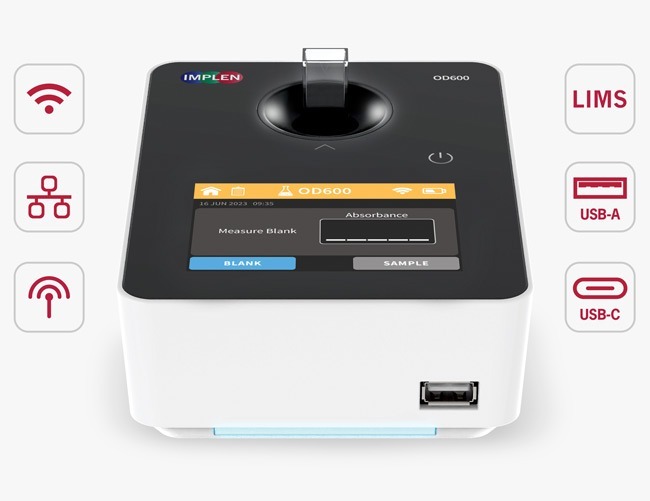

Effortless Data Export & Advanced Connectivity Options
The Implen OD600® features simple data export via USB in .csv and .xls formats, with advanced connectivity options like USB-C for charging and USB-A for data export. The device features LIMS integration via WiFi, LAN/Ethernet (REST API PUSH).
Implen OD600® Tech Specs
Implen OD600® Technical Specifications
| Optical Specifications & Displayed Information | |
| Wavelength | 600 nm |
| Photometric Range | OD600: 0 – 4 A; McFarland: 0 – 16 MFU |
| Accuracy | OD600: @ 1A: < ±0.01 A | McFarland: @ 0 – 8 MFU: ≤ ±0.1 MFU |
| Reproducibility | OD600: @ 1A: < ±0.002 A | McFarland: @ 0 – 8 MFU: ≤ ±0.05 MFU |
| Cuvettes/Tubes | DiluCells; 10 mm macro- and semi-micro cuvettes; 10, 12, 16, 18 mm glass/falcon tubes – Without the need for adapters. Wipeable sample compartment – fixed with drain hole. |
| General Specifications | |
| Instrument Size | 140 (L) x 110 (W) x 70 (H) mm |
| Weight | Weight 0.6 kg |
| Display Size | 3.5″ glove compatible touchscreen, 480 x 320 pixels |
| Memory | 4 GB internal memory, access to all previously measured sample data in sample list feature |
| Time and Date Data | Manual or automatic time setting |
| Connectivity | USB A port for data export; USB C for charging; LIMS integration via WiFi, Ethernet/LAN (Rest API PUSH) |
| Battery Life | Rechargeable, continuous use for ~8 hours |
| Certification | CE, IEC61010-1:2012 and EN 61326-1:2013 |
| Data Format | .xls and .csv format exportable. For LIMS: JSON |
Features and specifications are subject to change without notice
Compatible Sample Containers
| Container Type | Path Length | Minimum Volume | Virtual Dilution | Adapter |
| DiluCell™ 10 8.5 mm center height | 1 mm | 300 μl | 1:10 | – |
| Macro Cuvette Max fill volume 4.5 ml | 10 mm | 1 ml | – | – |
| Semi-micro Cuvette Max fill volume 1.4 ml | 10 mm | 0.5 ml | – | – |
| 10 mm Tubes | N/A* | 0.9 ml | – | – |
| 12 mm Tubes | N/A* | 1.1 ml | – | – |
| 16 mm Tubes | N/A* | 1.8 ml | – | – |
| 18 mm Tubes | N/A* | 2.0 ml | – | – |
*Depends on tube being used.
Features and specifications are subject to change without notice
