DNA Quantification

Concentration • Purity • Quality

DNA Quantification Using UV/Vis Spectroscopy

Accurate DNA quantification is an essential part of many molecular biology workflows. Before performing PCR, cloning, sequencing, next-generation sequencing, or other downstream applications, researchers need to know not only how much DNA is present in a sample, but also whether that DNA is sufficiently pure for reliable use.

UV-Vis spectrophotometry is one of the most widely used methods for DNA quantification because it is fast, straightforward, and capable of providing both concentration and purity information in a single measurement.

By analyzing absorbance at 260 nm and comparing absorbance ratios at additional wavelengths, researchers can quickly evaluate DNA samples and make better decisions before moving on to critical downstream steps.

This page explains how DNA quantification using UV spectroscopy works, what A260 means, how purity ratios are interpreted, what can affect accuracy, and how UV-Vis measurements fit into a typical laboratory workflow.

How DNA Quantification Works, Purity Ratios, DNA Concentration Formula

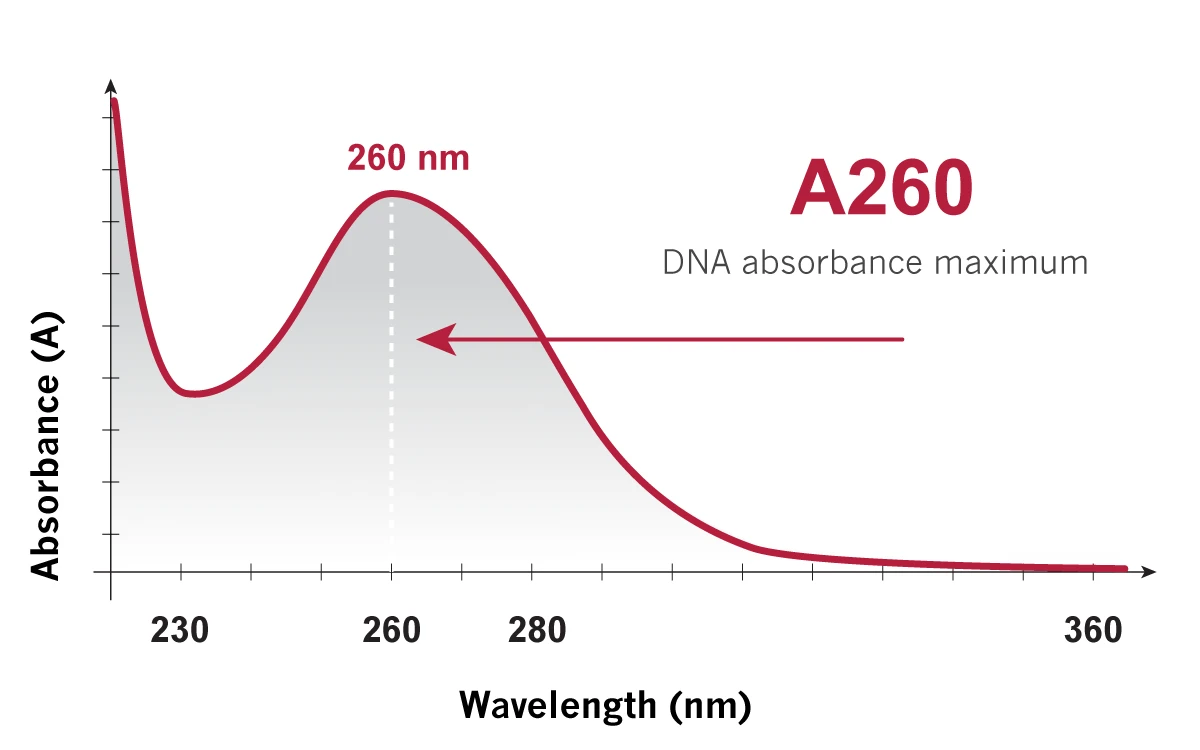

Typical absorbance spectrum of nucleic acids showing peak at 260 nm used for DNA and RNA quantification.

Why DNA Quantification Matters

DNA concentration can directly influence the quality, efficiency, and reproducibility of downstream experiments. If a sample is too dilute, it may not provide enough template for the intended application. If it is too concentrated, it may require normalization before use.

Just as importantly, a sample can have an acceptable DNA concentration while still containing contaminants that interfere with enzymes, amplification reactions, or sequencing performance.

Reliable DNA quantification helps researchers:

Ensure consistent input for PCR and qPCR
Normalize samples for sequencing workflows
Evaluate extraction success
Check whether a sample is suitable for cloning or enzymatic reactions
Identify possible contamination before investing time in downstream work

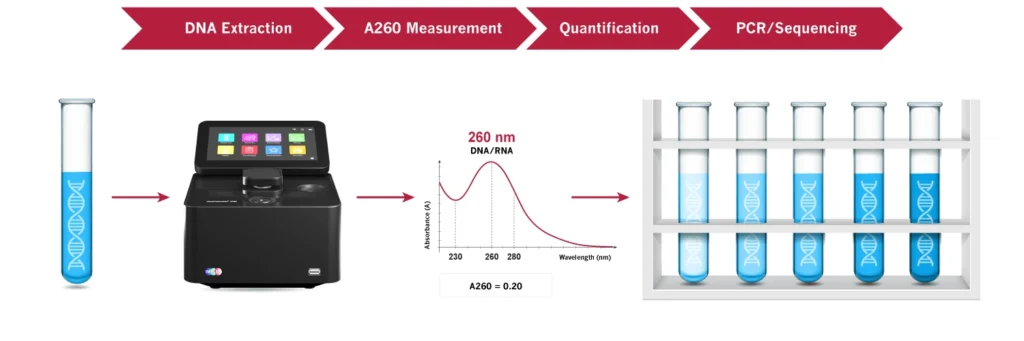

Typical DNA quantification workflow from extraction to A260 measurement and downstream applications such as PCR and sequencing.

Because DNA analysis often sits near the beginning of a workflow, the quality of this step can affect everything that follows.

Fast and accurate quantification can therefore save time, reduce failed experiments, and improve data quality.

How DNA Quantification Works in UV/Vis Spectroscopy

DNA absorbs ultraviolet light strongly at 260 nm because of the aromatic nucleotide bases in its structure. When a DNA-containing sample is exposed to UV light, the amount of light absorbed at this wavelength is proportional to the concentration of nucleic acid in the sample.

This relationship is described by the Beer-Lambert law, which connects absorbance to concentration, path length, and extinction coefficient.

In practical laboratory use, a spectrophotometer measures absorbance at 260 nm and converts that absorbance into a DNA concentration value using established conversion factors.

For nucleic acids, the commonly used conversion factors are:

1 A260 = 50 µg/mL for double-stranded DNA
1 A260 = 33 µg/mL for single-stranded DNA
1 A260 = 40 µg/mL for RNA

These conversion factors allow rapid determination of concentration from an absorbance reading. In many workflows, this means a researcher can place a microvolume sample onto the pedestal or load a cuvette, run the measurement, and immediately obtain a concentration result without additional reagents or incubation steps.

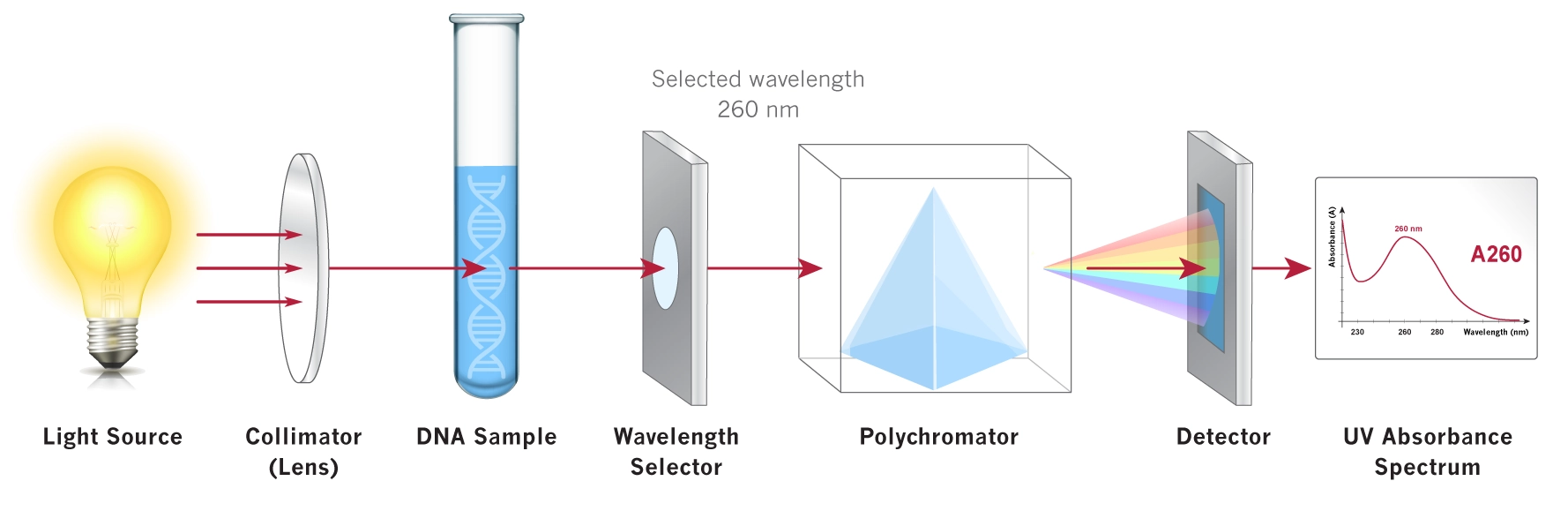

UV-Vis spectrophotometer workflow illustrating sample measurement and spectral detection using a polychromator-based optical system.

What Is A260?

A260 refers to the absorbance of a sample measured at 260 nm. For DNA quantification, this is the key wavelength because nucleic acids have their absorbance maximum in this region.

A higher A260 value generally indicates a higher nucleic acid concentration, assuming the sample is free from major contaminants and the measurement is performed correctly. The absorbance value itself is not the final result. Instead, the instrument uses that absorbance together with the known path length and conversion factor to calculate concentration.

In practical terms, A260 provides the foundation for DNA quantification, while additional wavelength measurements help researchers evaluate purity.

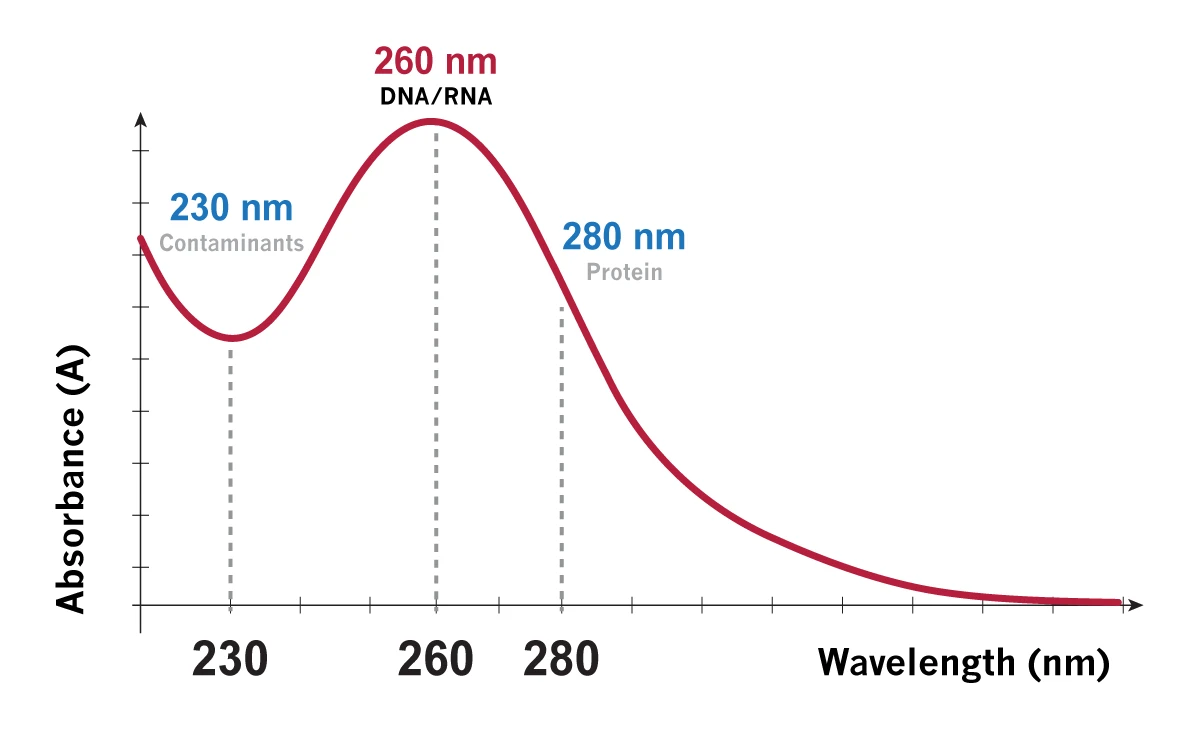

UV absorbance profile highlighting 230 nm (contaminants), 260 nm (nucleic acids), and 280 nm (proteins).

DNA Concentration Calculation

DNA concentration is determined from absorbance at 260 nm using UV-Vis spectroscopy, based on the Beer-Lambert law.

For double-stranded DNA, the standard convention is:

DNA concentration = A260 × 50 µg/mL × dilution factor

For example, if a double-stranded DNA sample produces an A260 of 0.20 and was measured without dilution, the estimated concentration is: 0.20 × 50 µg/mL = 10 µg/mL

If the sample was diluted prior to measurement, the dilution factor must also be included in the calculation.

Modern spectrophotometers typically perform this calculation automatically, but it is still useful for researchers to understand the principle behind the reported concentration value.

For DNA, A260 provides a fast and reliable starting point.

DNA concentration is calculated from A260 using established conversion factors based on the Beer-Lambert law.

For RNA, use 40 µg/mL per A260 unit.

For DNA, A260 gives you a fast and reliable starting point.

Assessing DNA Purity with UV Absorbance Ratios

One of the major advantages of UV-Vis spectrophotometry is that it provides more than concentration alone. By measuring absorbance at multiple wavelengths, researchers can evaluate whether contaminants may be present in the sample. The two most commonly used purity ratios in DNA analysis are:

260/280 Ratio

The 260/280 ratio is used primarily to assess possible protein contamination. Proteins absorb more strongly at 280 nm, while nucleic acids absorb more strongly at 260 nm. By comparing these two absorbance values, researchers can estimate whether protein or phenolic contamination may be affecting the sample.

For pure DNA, a 260/280 ratio of approximately 1.8 is generally considered acceptable.

A lower ratio may suggest:

Protein contamination
Phenol carryover
Other UV-absorbing impurities

A higher ratio can occur in some cases due to measurement artifacts, blanking issues, or unusual sample composition.

260/230 Ratio

The 260/230 ratio is often used as a secondary purity indicator. It can help identify contamination from compounds that absorb around 230 nm, such as salts, carbohydrates, guanidine, EDTA, or residual organic reagents from extraction procedures. For many pure DNA samples, a 260/230 ratio in the range of about 2.0 to 2.2 is considered desirable. A low 260/230 ratio may suggest:

Chaotropic salt contamination
Residual extraction reagent carryover
Buffer components or other small molecule contaminants

Together, the 260/280 and 260/230 ratios provide a fast first look at DNA sample purity and can help guide troubleshooting before downstream use.

When UV Spectroscopy Is Especially Useful for DNA Analysis

UV-Vis DNA quantification is particularly valuable when researchers need:

Fast results without reagent preparation
Concentration and purity information in a single measurement for routine DNA quality control
A practical method for PCR, cloning, and sequencing preparation
Microvolume measurement for limited samples

Because it is fast and economical, UV spectroscopy is often used as a first-line method for nucleic acid assessment in research laboratories.

Limitations of UV-Based DNA Quantification

While UV spectroscopy is widely used, it is important to understand its limitations.

UV absorbance measures total nucleic acid concentration and does not distinguish between DNA and RNA. It also cannot determine whether DNA is intact, fragmented, or biologically functional. In addition, compounds that absorb in the UV range can affect concentration and purity values.

For some highly sensitive workflows, researchers may use complementary methods when additional specificity is needed. Still, UV-Vis spectrophotometry remains one of the most practical and widely adopted tools for rapid DNA quantification and purity assessment.

Applications That Commonly Require DNA Quantification

DNA quantification is commonly performed before:

PCR and qPCR
Cloning and transformation workflows
Next-generation sequencing
Sanger sequencing
Restriction digestion
Sample archiving and normalization
General molecular biology quality control

In all of these workflows, understanding DNA concentration and purity helps researchers prepare samples more consistently and reduce avoidable problems later in the process.

What Can Affect Measurement Accuracy?

Although UV spectroscopy is fast and convenient, several factors can influence the accuracy of DNA quantification results.

Contaminants

Any compound that absorbs in the UV range can affect measurement accuracy. RNA, proteins, phenol, salts, and extraction reagents may alter absorbance values and lead to overestimation or underestimation of DNA concentration.

Improper Blanking

Accurate blanking is essential. The blank should closely match the buffer or solution in which the sample is dissolved. If the wrong blank is used, absorbance values may be shifted and purity ratios may become misleading.

Sample Homogeneity

If the sample is not well mixed, the small aliquot used for measurement may not represent the true concentration of the full sample. This is particularly important in microvolume analysis.

Low Concentration Samples

Very dilute DNA samples can approach the lower detection limits of the instrument. In such cases, small absorbance fluctuations may have a greater impact on the reported result.

Surface Contamination

In microvolume measurements, leftover residue on the measurement surface can influence subsequent readings. Clean measurement surfaces and careful sample handling are important for reproducible results.

Microvolume vs Cuvette DNA Measurements

DNA quantification can be performed using either microvolume measurements or standard cuvette-based measurements. Each approach has advantages depending on the workflow.

Microvolume Measurement

Microvolume spectrophotometry is especially useful when sample volume is limited. It allows researchers to measure DNA concentration using very small sample amounts, often in the low microliter range, without needing disposable cuvettes. Common benefits include:

Minimal sample consumption
Fast measurement
Convenient routine QC
Ideal for precious or limited samples

Cuvette Measurement

Cuvette-based measurement can be useful when larger sample volumes are available or when certain workflows benefit from a defined standard path length and traditional sample handling. Common benefits include:

Familiar format for many laboratories
Useful for a wide range of sample types
Good fit for certain educational, assay-based, or standard workflows

The choice between microvolume and cuvette formats depends on sample availability, concentration range, laboratory routine, and the type of measurement being performed.

Typical Workflow for DNA Quantification

In many laboratories, DNA quantification by UV spectroscopy follows a simple routine. This workflow is simple, fast, and easy to incorporate into daily laboratory practice:

1. Sample Preparation

DNA is extracted and resuspended in an appropriate buffer or water. The sample should be mixed thoroughly before measurement.

2. Blank Measurement

A blank is measured using the same buffer or solvent used for the DNA sample. This establishes the baseline for the analysis.

3. DNA Measurement

The sample is measured, and the instrument records absorbance at 260 nm and additional wavelengths used for purity analysis.

4. Concentration & Purity Review

The researcher reviews the DNA concentration together with the 260/280 and 260/230 ratios.

5. Normalization & QC

If the concentration is appropriate and purity is acceptable, the sample can be normalized for downstream use. If not, additional purification or troubleshooting may be needed.

Applications of DNA Quantification

DNA quantification is a critical step in many molecular biology workflows. Accurate concentration and purity measurements help ensure reproducibility, optimize experimental conditions, and improve the reliability of downstream applications.

PCR and qPCR
Next-generation sequencing (NGS)
Cloning and transformation
Restriction enzyme digestion
Sample normalization and preparation
DNA storage and quality control

Advantages of UV-Based DNA Quantification

Fast measurement without reagents
Simultaneous concentration and purity analysis
No consumables required
Suitable for routine laboratory workflows

Recommended Instruments for DNA Quantification

Implen spectrophotometers support DNA quantification workflows with options for microvolume and cuvette-based analysis, depending on the needs of the laboratory. Researchers performing routine nucleic acid quantification often look for instruments that provide:

Fast A260 measurements
Reliable purity ratio analysis
Low sample volume requirements
Simple workflow integration
Clear data output for daily use

Instruments that combine microvolume convenience with full-spectrum analysis provide more diagnostic clarity than fixed-wavelength systems.

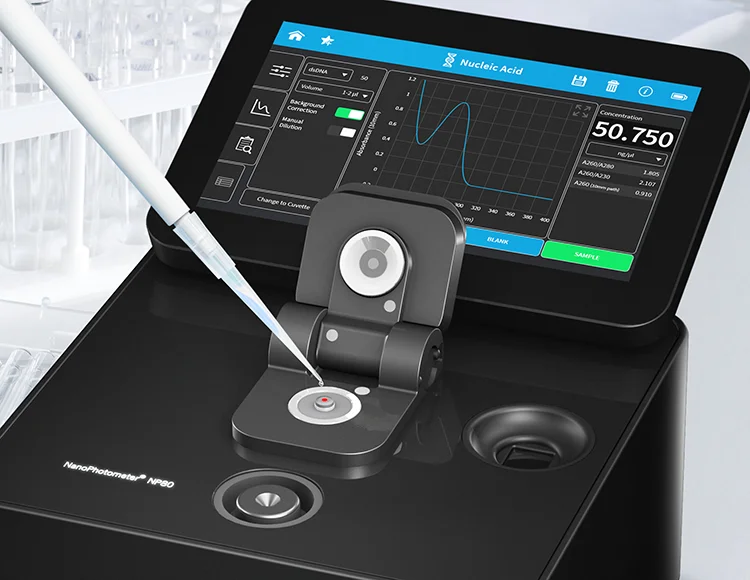

Fast, accurate DNA quantification using microvolume UV-Vis spectrophotometry.

DNA quantification using UV spectroscopy remains one of the most widely used analytical approaches in life science laboratories. It provides researchers with a rapid method to determine DNA concentration while also offering valuable information about sample purity through absorbance ratios such as 260/280 and 260/230.

By understanding how A260 measurements work, what purity ratios indicate, and what factors can affect accuracy, researchers can use UV-Vis spectrophotometry more effectively and make more informed decisions about sample quality before downstream applications. For laboratories that need a practical, fast, and information-rich method for DNA analysis, UV spectroscopy continues to be an essential tool.
