Microvolume

UV-Vis Low Volume Measurement

Microvolume Spectrophotometry
Using UV-Vis

Microvolume spectrophotometry has become a standard method for measuring nucleic acids and proteins in modern laboratories. It allows researchers to determine concentration and purity using very small sample volumes, typically in the low microliter range.

UV-Vis microvolume measurements enable rapid analysis rapid analysis without the need for cuvettes, reducing sample consumption and simplifying workflows.

By placing a small droplet directly onto the measurement surface, researchers can quickly obtain absorbance-based results across a full spectrum.

This page explains how microvolume spectrophotometry works, when it is used, what can affect measurement accuracy, and how it fits into routine laboratory workflows.

How Microvolume Spectrophotometry Works

Microvolume spectrophotometry measures absorbance using a very short optical path length formed between two measurement surfaces. A small sample droplet is placed on the lower pedestal, and the upper arm is lowered to create a liquid column with a defined path length.

Light passes through the sample, where absorbance is measured across selected wavelengths or the full UV-Vis spectrum. Because the path length is short, even highly concentrated samples can be measured without dilution. Unlike traditional cuvette measurements, microvolume systems eliminate the need for disposable consumables and allow rapid, repeatable measurements with minimal preparation.

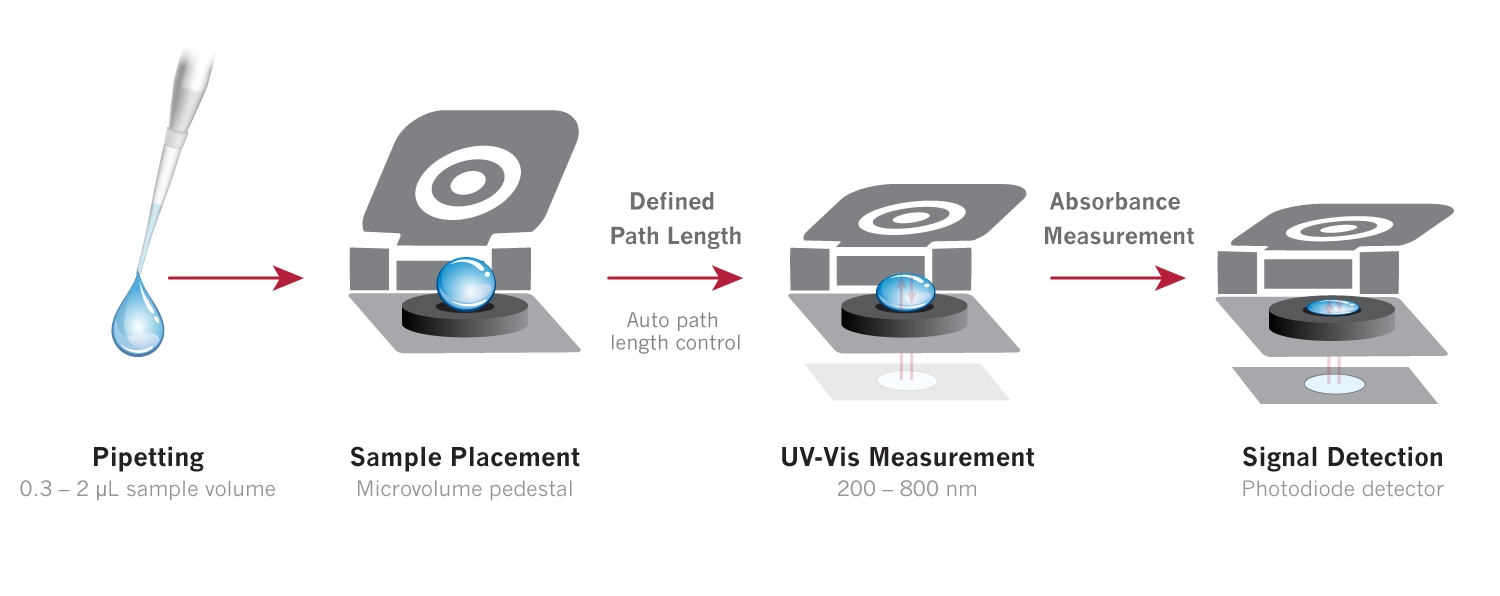

Typical microvolume spectrophotometry workflow, from sample loading to UV-Vis measurement and signal detection using minimal sample volume.

Small volume, same physics — accuracy depends on clean surfaces and good technique.

How Path Length Is Controlled in Microvolume Measurements

Microvolume spectrophotometry relies on a defined optical path length formed between two measurement surfaces. When a small droplet is placed on the pedestal, the instrument automatically adjusts the distance between these surfaces to create a consistent and measurable light path.

This automatic path length control allows accurate absorbance measurements across a wide concentration range without requiring manual dilution. By shortening the path length for highly concentrated samples and extending it for lower concentrations, the system maintains measurement reliability while using low sample consumption.

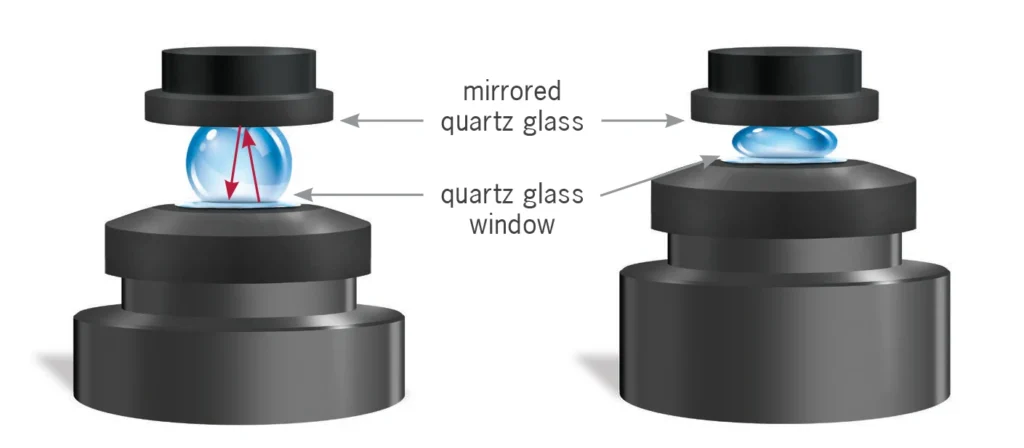

Close-up of microvolume measurement showing how path length is defined between optical surfaces for accurate absorbance readings.

What Makes Microvolume Measurement Different?

Microvolume spectrophotometry differs from cuvette-based measurement in several key ways:

Uses very small sample volumes (typically 0.3 – 2 µL)
No cuvettes or disposable consumables required
Fast measurement with minimal preparation
Short path length enables measurement of concentrated samples
Simple cleaning between measurements

These characteristics make microvolume systems particularly useful for routine laboratory workflows and precious or limited samples.

When Microvolume Spectrophotometry
Is Especially Useful

Microvolume measurement is particularly valuable when researchers need:

To conserve limited or expensive samples
Rapid concentration and purity analysis
Minimal preparation and fast turnaround
Routine quality control of DNA, RNA, or proteins
A convenient method for high-throughput workflows

Due to its speed and simplicity, microvolume spectrophotometry is often used as a first-line method for sample assessment in many laboratories.

What Can Affect Measurement Accuracy?

Although microvolume spectrophotometry is fast and convenient, several factors can influence accuracy:

Sample Homogeneity

The small sample volume means that proper mixing is essential. An unrepresentative droplet can lead to inaccurate results.

Surface Cleanliness

Residual material on the measurement surface can affect subsequent readings. Proper cleaning between measurements is critical.

Improper Blanking

The blank should match the sample buffer as closely as possible. Incorrect blanking can shift absorbance values and affect results.

Low Volume Handling

Pipetting very small volumes requires precision. Inconsistent droplet placement can introduce variability.

Contaminants

Any compound that absorbs in the UV range can influence measurements, including salts, proteins, nucleic acids, or residual reagents.

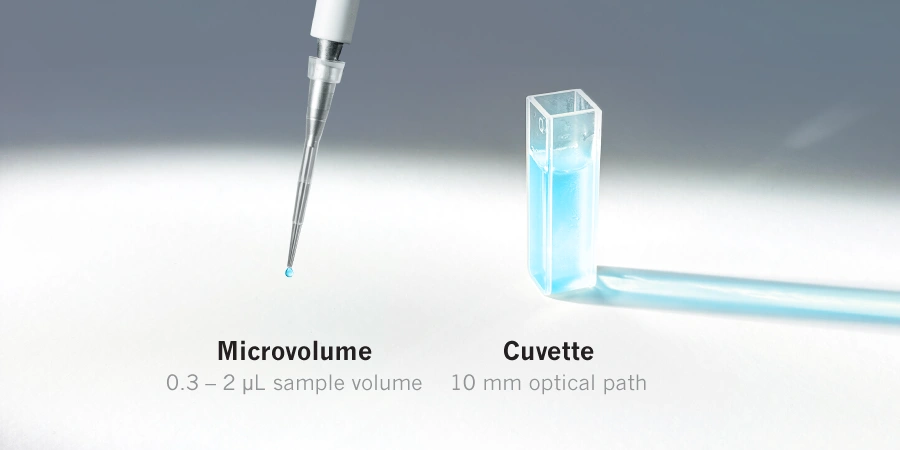

Microvolume vs Cuvette Measurements

Both microvolume and cuvette-based spectrophotometry are widely used, and each has advantages depending on the workflow.

Microvolume Measurement

Minimal sample consumption
Fast and convenient
No consumables required
Ideal for routine QC and limited samples

Cuvette Measurement

Defined and fixed path length
Suitable for larger volumes
Compatible with assay-based workflows
Familiar format for many laboratories

The choice between microvolume and cuvette measurement depends on sample availability, concentration range, and the type of analysis being performed.

Typical Workflow for Microvolume Measurement

In many laboratories, microvolume spectrophotometry follows a simple routine:

1. Sample Preparation

The sample is prepared in an appropriate buffer and mixed thoroughly.

2. Blank Measurement

A blank is measured using the same buffer to establish a baseline.

3. Sample Application

A small droplet is placed on the measurement pedestal.

4. Measurement

The instrument records absorbance at relevant wavelengths or across the full spectrum.

5. Data Review & QC

The researcher evaluates concentration, purity ratios, or spectral features before proceeding.

Limitations of Microvolume Spectrophotometry

While microvolume measurement is highly practical, it has some limitations:

Sensitive to sample handling and pipetting technique
Small volume may not represent heterogeneous samples
Surface contamination can affect accuracy
Requires careful cleaning between measurements

For certain workflows, cuvette-based measurements or complementary methods may be preferred.

Applications of Microvolume Spectrophotometry

Because it supports multiple types of measurements, microvolume spectrophotometry is a versatile tool in life science laboratories. Microvolume spectrophotometry is used across a wide range of applications:

DNA and RNA quantification
Protein concentration measurement (A280)
Purity ratio assessment (260/280, 260/230)
Sample quality control before PCR or sequencing
Routine laboratory workflows and normalization

Advantages of Microvolume Spectrophotometry

Very low sample volume required
No consumables or cuvettes
Fast measurement and workflow integration
Supports concentration and purity analysis
Suitable for a wide range of sample types

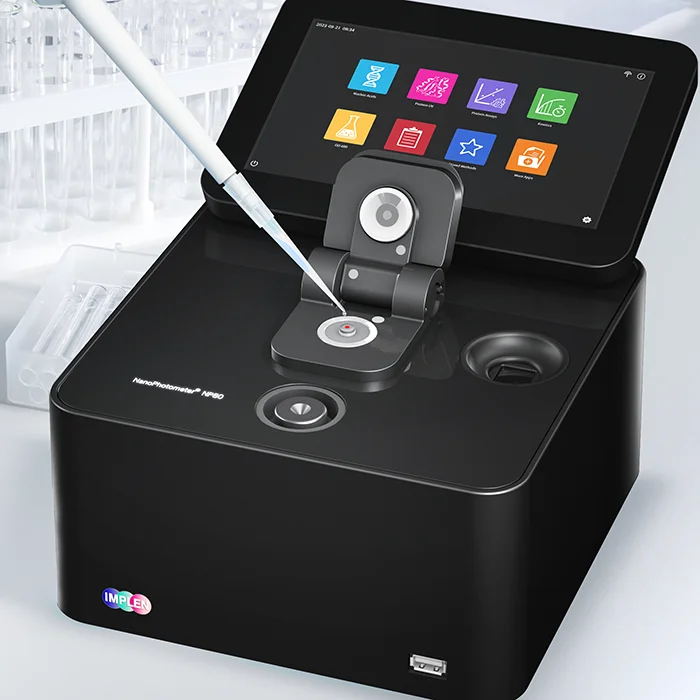

Recommended Instruments for Microvolume Spectrophotometry

Implen spectrophotometers support microvolume workflows with integrated pedestal measurement and full-spectrum UV-Vis analysis. Researchers performing routine nucleic acid and protein quantification often look for instruments that provide:

Reliable microvolume measurements
Full-spectrum scanning for deeper analysis
Accurate purity ratio evaluation
Fast and intuitive workflow integration
Clear data output for daily use

Instruments that combine microvolume convenience with full-spectrum capability provide greater flexibility and more diagnostic insight than fixed-wavelength systems.

Fast, accurate microvolume measurements using UV-Vis spectrophotometry.

Microvolume spectrophotometry has transformed how laboratories perform routine concentration and purity measurements. By enabling rapid analysis with minimal sample volume, it simplifies workflows while preserving valuable samples.

By understanding how microvolume measurement works, what factors influence accuracy, and when to use it, researchers can apply this technique more effectively and improve the reliability of their results. For laboratories seeking a fast, practical, and flexible method for UV-Vis analysis, microvolume spectrophotometry remains an essential tool.
