Laboratories operating in GMP, GLP, and other GxP-regulated environments have increasingly requested support for 21 CFR Part 11 compliance for nanovolume UV/Vis spectrophotometers. In response, Implen introduced the CFR21 software package in April 2019, enabling eligible NanoPhotometer® models to be upgraded to support compliance with FDA 21 CFR Part 11 requirements.
With this solution, Implen once again demonstrated its leadership in the nanovolume spectrophotometer market by providing comprehensive 21 CFR Part 11 compliance options for the NanoPhotometer® product line. The CFR21 package supports stand-alone operation through the instrument’s built-in computer, touchscreen interface, and battery backup, as well as operation via external computers or integration with Laboratory Information Management Systems (LIMS) through a REST API.

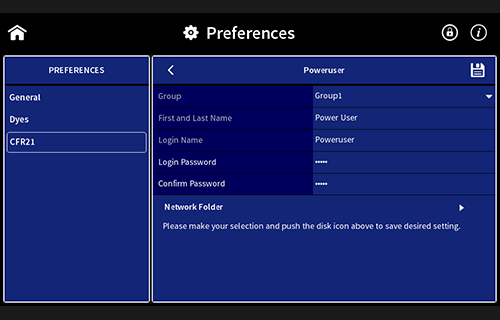

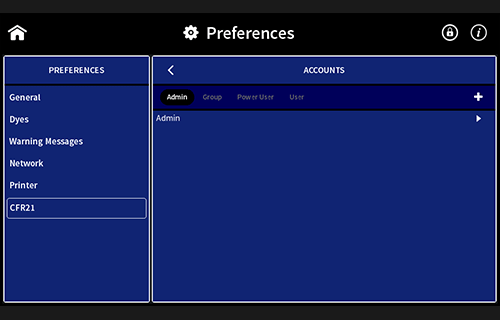

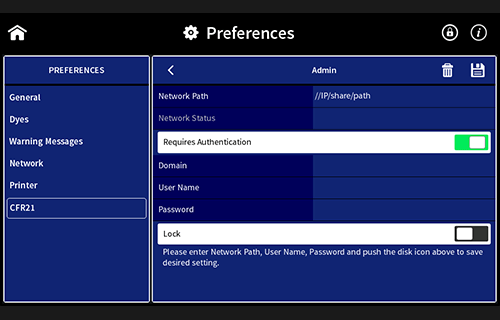

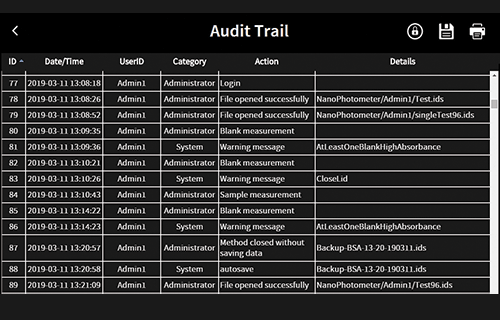

Implen CFR21 software supports FDA 21 CFR Part 11 compliance and is an optional software tool ideal for GLP/GMP/GxP laboratories, which require proper electronic record keeping. Implen’s CFR21 software includes
For a detailed list of CFR21 software features and the corresponding FDA requirements please refer to the following information

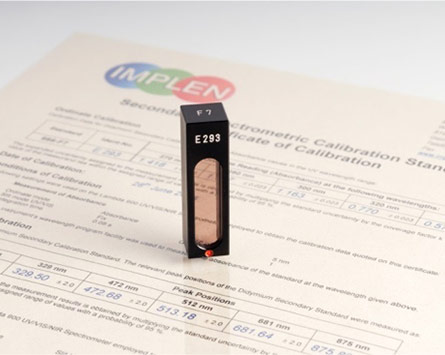

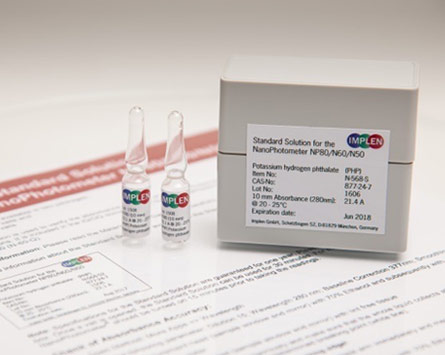

The NanoPhotometer® IQOQ package consists of a liquid and/or a solid NIST traceable secondary standard and a corresponding Excel-based software tool depending on the type of instrument. The liquid standard is based on a non-toxic compound absorbing at 280 nm to cover the area of most interest for life science applications.
All secondary standards come with a certificate of compliance. The Excel-based software produces an automated report displaying all relevant data for an audit.
The IQOQ procedure is fully described within the report documents and is simple and straightforward so that it can be carried out by a local lab technician to save time and cost.

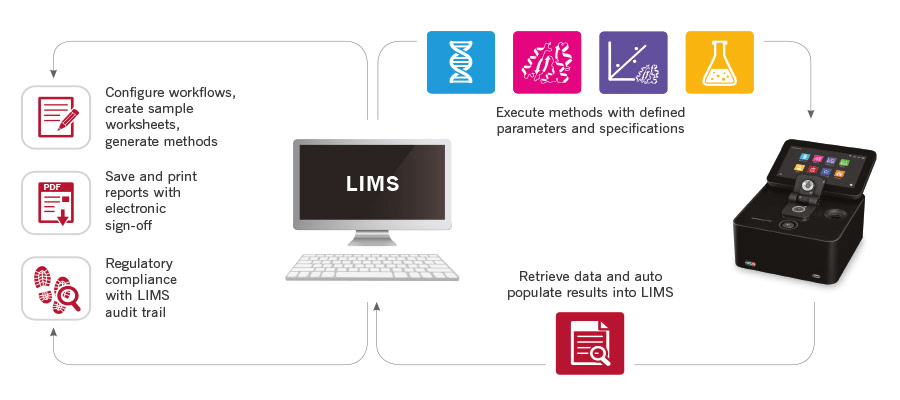

Expand your workflow capabilities by integrating the NanoPhotometer® with your LIMS. Automate processes, improve data integrity, and increase laboratory efficiency while saving time.
The NanoPhotometer® can be integrated with any LIMS software provider via our proprietary REST API. This allows data to be transferred directly from the instrument into the worksheet and enables execution of methods established within the LIMS. Contact your local Implen Support Team to learn more about this option and to start the integration process.

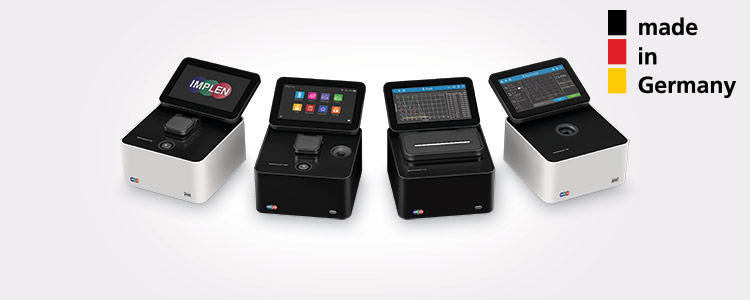

The table below demonstrates a comparison of the NanoDrop™ One/One C vs. our NanoPhotometer® line of spectrophotometers
| Features | NanoDrop™ One / One C | Implen NanoPhotometer® N60/NP80 |
| 21 CFR Part 11 Upgrade | ||
| Software Control | External control via Windows computer only | Stand-Alone and/or control via Windows and Mac OS |
| User Management | Yes | Yes |
| Audit Trail | Yes | Yes |
| Electronic Signature | Yes | Yes |
| Instrument Performance | ||
| Minimum Sample Volume | 1 µL 2 µl sample size is recommended for protein measurements | 0.3 – 2 μL |
| Pathlength | 0.03 – 1 mm Auto-ranging | Utilizes two fixed path lengths 0.67 and 0.07 mm Fixed path lengths never change over the lifetime of the instrument |
| Measurement Time | 8 seconds | 2.5 – 4 seconds (full scan 200 – 900 nm) |
| Enclosed Sample Measurement Surfaces | NO Column is exposed to surroundings | YES Enclosed sample measurement surfaces No evaporation Accurate results independent from environmental conditions Ability to measure proteins with detergent buffers without sample build-up |
| Photometric Range Cuvette | 0 – 1.5 A (with a 10 mm cuvette) | 0 – 2.6 A |
| Analyze Organic Solvent Samples in a Drop | Cuvette only | The NanoPhotometer® Sample Compression Technology allows the analysis of organic solvent samples in a drop and in a cuvette |
| Detection Range* | dsDNA: 2 – 27,500 ng/µl BSA: 0.06 – 820 mg/ml | dsDNA: 1 – 16,500 ng/µl BSA: 0.03 – 478 mg/ml |
| Optical Specifications | ||
| Measurement Wavelength | Full scan from 190 – 850 nm | Full scan from 200 – 900 nm |
| Illuminated Read Head | N/A | Illuminated read head for an easy sample application |
| Light Source | Xenon Flash Lamp | Xenon Flash Lamp |
| Instrument Features | ||
| Built-In Vortexter | N/A | YES 2,800 rpm; tube size up to 2.0 ml |
| Reconditioning-free | NO The pedestal of the instrument may become unconditioned over time, especially when measuring proteins or samples that contain surfactants or detergents. This requires reconditioning of the unit’s pedestal. | YES Scratch-resistant inert quartz pedestal that requires no reconditioning |
| Quality Control Warnings | Acclaro Technology with contaminant calculations | Sample Control™: quality control technology identifies sample impurities, potential contaminants, turbidity and lint residue Blank Control™: prevents inaccurate readings caused by high background blanks or insufficient cleaning |
| Built-in Web Application Server | NO Limited Android-based internal computer only | Full Web Application Server with REST API |
| Processing Power, Compatibility, Data Processing | ||
| Operating System | Android | Linux based NPOS (NanoPhotometer Operating System) Open platform to connect to Windows, Mac OS, Android, iOS via web application interface |
| Internal Data Storage | 32 GB | 32 GB for storage of thousands of measurements |
| Software Compatibility | Compatible with Windows only | Compatible with Windows 7, 8, 10 (32 and 64 bit), Mac OS X, iOS and Android OS |
| Data Transfer and Connectivity Options | The unit includes 3x USB A, Ethernet, Bluetooth, WiFi | The unit includes 2x USB A, USB B, HDMI, Ethernet, WiFi |
| Data Output | Separate as .csv .tsv .sql | Complete data as PDF & Excel |
| Instrument Control | The device can be connected to a computer via Ethernet cable for operation, control and data storage. | Easy control of the NanoPhotometer is possible via Wi-Fi from tablets or smartphones (Android OS & iOS). Control from PCs via LAN, WiFi or USB (Windows & Mac). The HDMI port allows for presentations directly from the device. |
| WiFi Hotspot | Client possible | Built-in WiFi hotspot and with WiFi client capability |
| Instrument Dimensions | 20 × 25.4 × 32.3 cm (8 × 10 × 12.7 inches) | 20 x 20 x 12 cm (7.9 x 7.9 x 4.7 inches) |

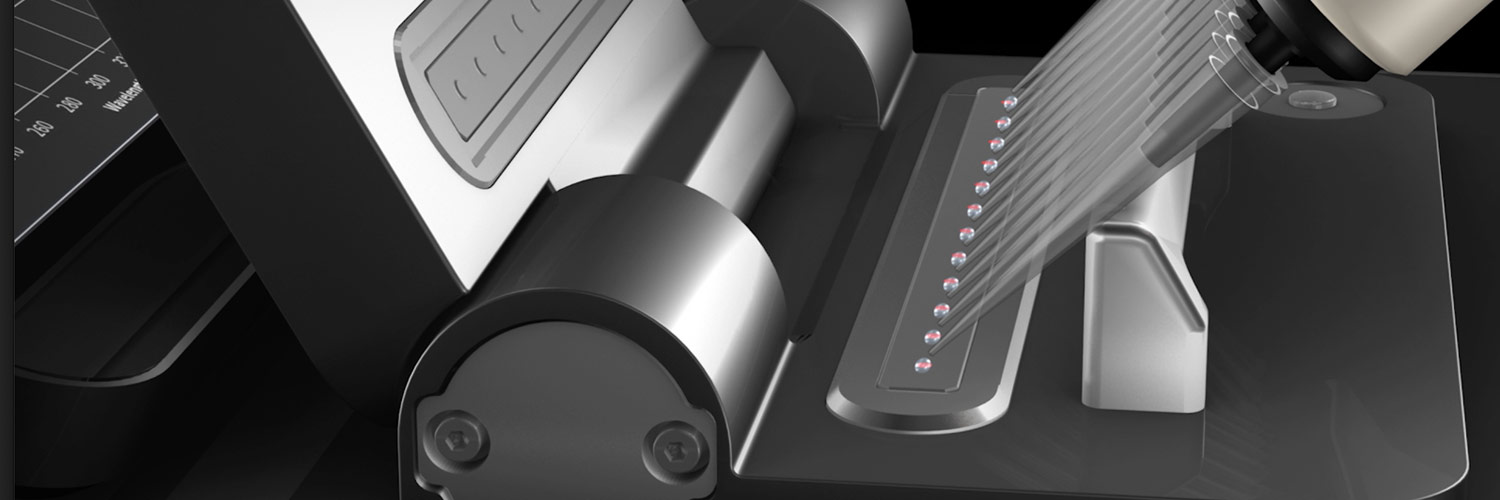

The table below demonstrates a comparison of the spectrophotometers 8-channel NanoDrop™ 8000 vs. 12-channel NanoPhotometer® N120
| Features | NanoDrop™ 8000 | Implen NanoPhotometer® N120 |
| 21 CFR Part 11 Upgrade | ||
| Software Control | N/A | Stand-Alone and/or control via Windows and Mac OS |
| User Management | N/A | Yes |
| Audit Trail | N/A | Yes |
| Electronic Signature | N/A | Yes |
| Instrument Performance | ||
| Number of Samples | Up to 8 | Up to 12 Single sample mode available |
| Minimum Sample Volume | 1 µL 2 µl sample size is recommended for protein measurements | 2 – 3.5 μL |
| Pathlength | 0.2 and 1 mm | Utilizes two fixed path lengths 1 and 0.125 mm Fixed path lengths never change over the lifetime of the instrument |
| Measurement Time | Less than 20 seconds 220 – 750 seconds for 8 samples | 20 seconds for 12 samples (full scan 200 – 900 nm) |
| Enclosed Sample Measurement Surfaces | NO Column is exposed to surroundings | YES Enclosed sample measurement surfaces No evaporation Accurate results independent from environmental conditions Ability to measure proteins with detergent buffers without sample build-up |
| Analyze Organic Solvent Samples in a Drop | N/A | The NanoPhotometer® Sample Compression Technology allows the analysis of organic solvent samples in a drop and in a cuvette |
| Detection Range* | dsDNA: 2.5 – 3,700 ng/µl BSA: 0.15 – 100 mg/ml |
dsDNA: 2 – 8,000 ng/µl BSA: 0.06 – 230 mg/ml |
| Optical Specifications | ||
| Measurement Wavelength | Full scan from 190 – 850 nm | Full scan from 200 – 900 nm |
| Illuminated Read Head | N/A | Illuminated read head for an easy sample application |
| Light Source | Xenon Flash Lamp | Xenon Flash Lamp |
| Instrument Features | ||
| Quality Control Warnings | N/A | Sample Control™: quality control technology identifies sample impurities, potential contaminants, turbidity and lint residue Blank Control™: prevents inaccurate readings caused by high background blanks or insufficient cleaning |
| Built-in Web Application Server | N/A | Full Web Application Server with REST API |
| Processing Power, Compatibility, Data Processing | ||
| Operating System | N/A Needs to be connected to a Windows computer |
Linux based NPOS (NanoPhotometer Operating System) Open platform to connect to Windows, Mac OS, Android, iOS via web application interface |
| Onboard Processor | N/A | Built-in computer with high-performance Intel Celeron dual core 2.4 GHz processor |
| Internal Data Storage | N/A | 128 GB for storage of thousands of measurements |
| Software Compatibility | Compatible with Windows only |
Compatible with Windows 7, 8, 10 (32 and 64 bit), Mac OS X, iOS and Android OS |
| Data Transfer and Connectivity Options | USB | The unit includes 2x USB A, USB B, HDMI, Ethernet, WiFi |
| Data Output | Separate as .csv .tsv .sql | Complete data as PDF & Excel |
| Instrument Control | The device must be connected to a computer via USB cable for operation, control and data storage. | Easy control of the NanoPhotometer is possible via Wi-Fi from tablets or smartphones (Android OS & iOS). Control from PCs via LAN, WiFi or USB (Windows & Mac). The HDMI port allows for presentations directly from the device. |
| WiFi Hotspot | N/A | Built-in WiFi hotspot and with WiFi client capability |
| Instrument Dimensions | 24 × 32 cm (89.4 × 12.6 inches) |
20 x 20 x 12 cm (7.9 x 7.9 x 4.7 inches) |
* dsDNA tends to precipitate/coagulate at concentrations above 10,000 ng/µl and should be diluted.
NanoDrop™ and NanoDrop™ One are registered trademarks of Thermo Fisher Scientific. Implen® is not affiliated, sponsored or endorsed by Thermo Fisher Scientific or NanoDrop™.
