OD600 Cell Density Measurements

Optical Density (OD) measurements of microbial and cell growth are one of the most common methods used in a microbiology lab. Some of the main applications are the determination of the optimal time at which to harvest, the determination of the optimal time to induce a culture when running a protein expression protocol or the monitoring of cloning procedures.
The growth of cells, bacteria or yeast (cell density, bacterial growth, yeast growth) in liquid culture media is commonly controlled by measuring the optical density at 600 nm (OD600). OD600 measurements are typically used to determine the stage of growth of a bacterial culture, these measurements help ensure that cells are harvested at an optimum point that corresponds to an appropriate density of live cells.
Since optical density in the case of OD600 measurements results from light scattering rather than light absorption, size and shape as well as dead cells and debris of a cell may add to light dissipating. Distinctive cell types that are at densities of the same level (eg. cells/mL) may therefore show varying values OD600 when estimated on a similar instrument.
Growth of bacterial cells typically progresses through a series of consecutive phases including lag, log, stationary, and decline. In general, cells should be harvested towards the end of the log phase, using the optical density of the samples to determine when this point has been reached. Cells are routinely grown until the absorbance at 600 nm (known as OD600) reaches approximately 0.4 prior to induction or harvesting.
OD600 basics implen-bacterial-cells-growth-curve
OD600 measurements OD600 bacterial cell growth, cuvette with sample, stray light
OD600 measurements OD600 bacterial cell growth, cuvette with sample, outgoing light
OD600 measurements OD600-diluphotometer-implen-Lambert-Beer-Law-w

The Beer-Lambert Law and OD600

The Beer-Lambert Law, also known as Beer’s Law, empirically relates the absorption of light to the properties of the sample. This law states that there is a logarithmic relationship between the transmission of light through a specific sample (T = I/Io with I = outgoing light and Io = incoming light), the molar extinction coefficient for a specific compound (ε), the concentration of the absorbing species in the material (c) and the distance the light travels (d).

OD estimations have gotten synonyms with estimations of bacterial concentration (C) or number (N), as per the Beer-Lambert law. However measurements of OD are actually measurements of turbidity, we can therefore apply the Beer-Lambert law, with certain contemplations, just for microbial colonies of low densities.

Difference in OD600 Readings

For turbid samples such as cell cultures, the major contributor for the absorbance measured is light scattering and not the result of molecular absorption following the Beer-Lambert Law. The measurements are therefore depending on the optical setup of the spectrophotometer (distance between the cell holder and instrument exit slit, monochromator optics, slit geometry, etc.), different instrument types will most likely tend to give different OD 600 readings for the same turbid sample.

Therefore, if results from different spectrophotometers are to be compared, they must be normalized first by either a simple correlation of the OD readings using the same sample on the two different instruments to compare

OD600-correction-value formula



or with a more precise approach by the creation of appropriate calibration curves.

Implen OD600 measurements on different photometer types, higher absorbance reading
Higher absorbance reading
Implen OD600 measurements on different photometer types, lower absorbance reading
Lower absorbance reading
The use of disposable cuvettes is recommended rather than micro/nano volume technologies (measurements in a drop) for optical density measurements of cell culture solutions. The amount of cells is reflected in the reading and the likelihood of fluctuating amount of cells in a drop from sample to sample can be considered as extremely significant.
It is therefore recommended to use cuvettes since the amount of error in a bigger volume is not as significant. The cuvette measurements provide a bigger average and therefore more reproducible readings. Also, to prevent the suspension settling too quickly and giving an OD reading that changes with time, glycerol should be added to the sample.

A calibration curve can be constructed by comparing measured OD600 to expected OD600 over a range of different concentrations. Expected OD600 is determined by counting cell number using an alternative technique (for example microscope slide method) and converting to OD600 using the rule of thumb that 1 OD 600 = 5 x 108 cells/ml for E. coli.

A high-quality instrument like the NanoPhotometer® or the Implen OD600® comes with a “correction factor” of 1 as default, which, once adjusted, will help to provide comparable results between different equipment.

Linear Range for OD600 Measurements​

The linear range of the instrument used for the measurements is critical to cover the entire growth cycle of the culture, an OD limit of at least 2.5 OD is advised to provide sufficient working range. Please bear in mind that the sample may not be linear over the entire range if a high amount of dead cells are present, obscuring the result. If samples should still be out of range, dilutions may become necessary; the parameters should be carefully selected to cover the entire desired area without compromising the linearity of the setup.

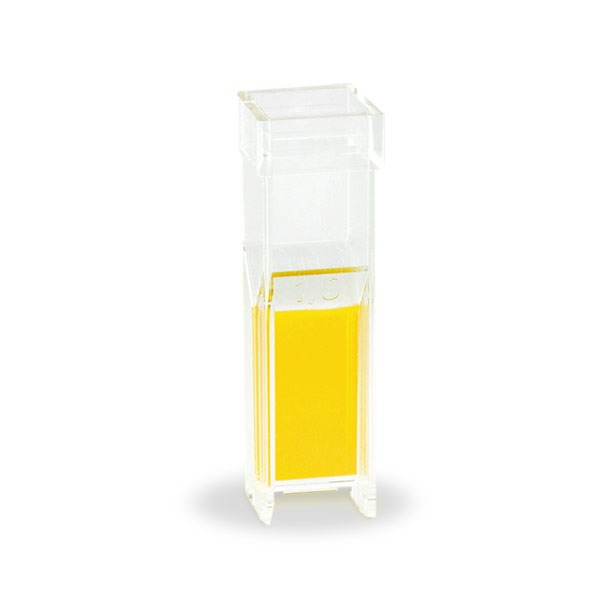

Implen Dilucell 10 automatic sample dilution 1/10 for cuvette spectrophotometer and OD600

Implen DiluCell™

To reduce the required volume for the OD600 measurement and to avoid time-consuming and error-prone manual dilutions, special cuvettes are available for the researcher. DiluCell™ allows for lower sample volume requirements and provides automatic virtual sample dilution.

Due to the unique design of DiluCell™ cuvettes, the light-path is reduced from the standard 10 mm to 1.0 mm (DC 10). According to the Lambert Beer Law, this shortened pathlength results in an automatic sample dilution by factor 10 (DC 10). Automatic dilution with DiluCell™ saves time and excludes dilution errors and cross contaminations.

Browse More Publications About OD600

OD600 Tool

Our spreadsheet OD600 Tool, Version 1.2, helps generate microbial growth curves according to OD600 values as well as to calculate other values of interest for microbiology experiments like cell forming units (CFU/mL) or time of inoculation. Once instrument calibration and standard curve have been established, it can easily be used to document growth experiments for any type of cell culture.

Download OD600 Tool

Implen Products that Work Best for OD600 Measurements

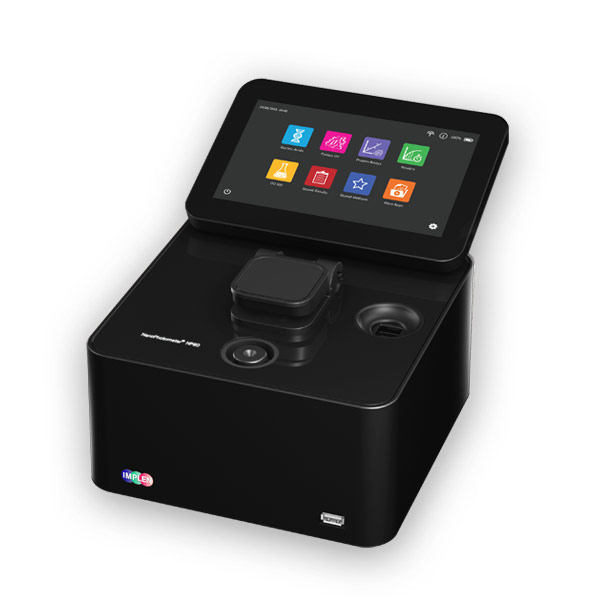

implen-nanophotometer-NP80-temperature-controlled-cuvette-cell-density-bacterial-growth-yeast-growth
The temperature-controlled cuvette port of the NanoPhotometer® NP80 provides an unmatched dynamic range of up to 2.6 Abs without the need for a cover during the reading. OD600 readings for Cell Density, Bacterial Growth and Yeast Growth are possible much faster and within a comfortable dynamic range. Features rapid scan capability for 200 – 900 nm. The NanoPhotometer® NP80 also offers a color touchscreen, a microvolume port for cuvette-free measurements in a drop, and an integrated low-vibration vortexer.
Request a Quote

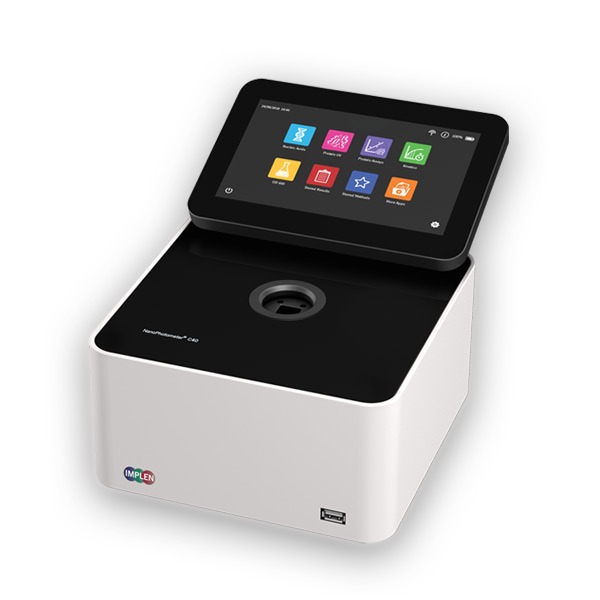

implen-nanophotometer-cuvette-spectroscopy-C40
The temperature-controlled cuvette port of the NanoPhotometer® C40 provides an unmatched dynamic range of up to 2.6 Abs without the need for a cover during the reading. OD600 readings for Cell Density, Bacterial Growth and Yeast Growth are possible much faster and within a comfortable dynamic range. The NanoPhotometer® C40 also offers a color touchscreen and features rapid scan capability for 200 – 900 nm.
Request a Quote
Implen Dilucell 10 automatic sample dilution 1/10 for cuvette spectrophotometer and OD600
DiluCell™ provides automatic 1/10 dilutions of higher concentrated samples and bubble-free filling for standard 1 cm cuvette compatible spectrophotometers and is the ideal tool for OD600 readings for Cell Density, Bacterial Growth and Yeast Growth. DiluCell™ allows for convenient spectrophotometric analysis from 340 – 1100 nm.
Request a Quote

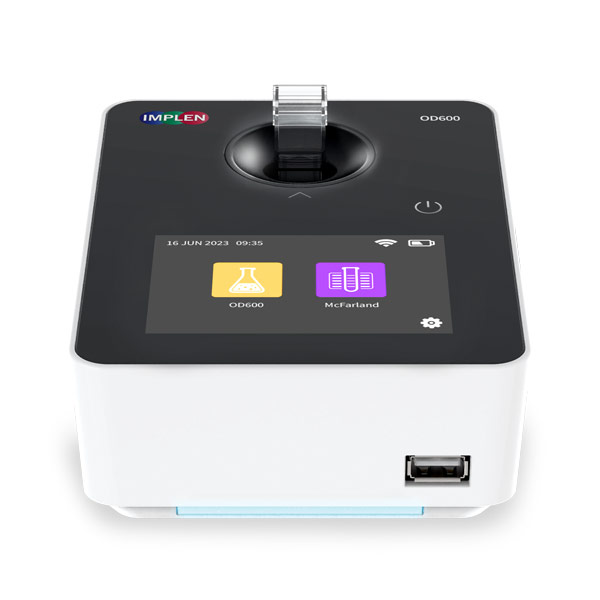

implen OD600 for cell density bacterial and yeast growth measurements made in Germany
Implen OD600® is a small, easy-to-use instrument dedicated to measuring samples near the 600 nm wavelength (OD600). It is ideal for measuring growth rates of several cell types (cell density, bacterial growth, yeast growth) including E. coli and yeast and McFarland turbidity measurements. It features the user-friendly design, robust data management capabilities, and seamless integration into LIMS. With multilingual support and adaptable sample compatibility, the Implen OD600® is ideal for diverse laboratory environments worldwide.
Request a Quote
